VSH Xpress S Bend 15 45

VSH Xpress S Bend 15 45

Regular price €13,89 EUR
Regular price Sale price €13,89 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 10 left

✔️ Free shipping from €100

✔️ Standard fast shipping

✔️ Delivered to any address for only €6.95!

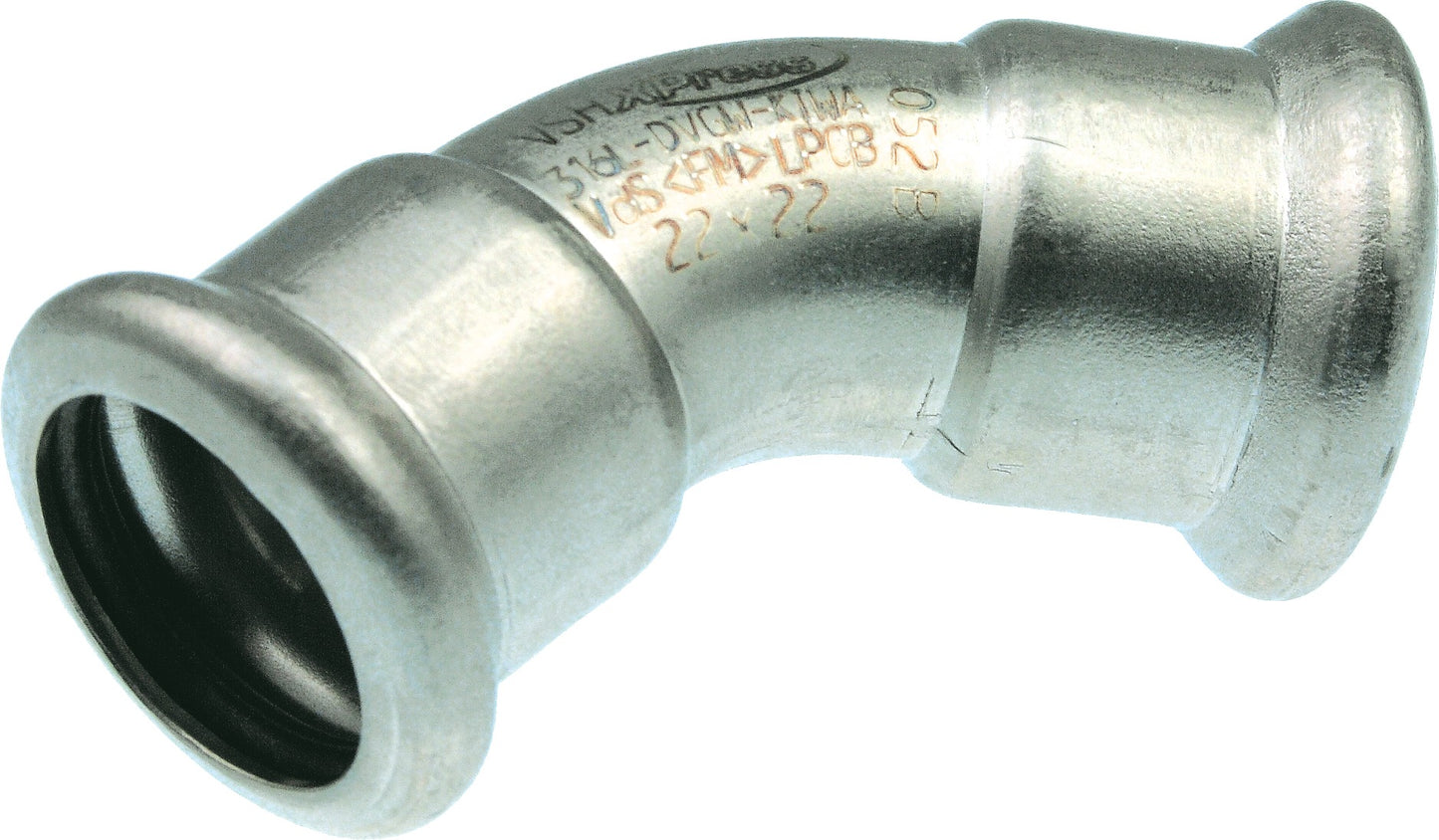

VSH XPress stainless steel bend coupling, 45°, 15 x 15mm, stainless steel (press x press)



Material connection 1: Stainless steel
Quality class connection 1: stainless steel 316 L (1.4404)
Surface protection connection 1: None (untreated)
Surface treatment connection 1: None (untreated)
Material connection 2: Stainless steel
Quality class connection 2: stainless steel 316 L (1.4404)
Surface protection connection 2: None (untreated)
Surface treatment connection 2: None (untreated)
Main color fitting: Gray
Shape: Bend
Version: 1-piece
Bend angle: 45°
Curve radius: 18 mm
System-related: Yes
Nom. diameter connection 1: DN 12
External pipe diameter connection 1: 15 mm
Wall thickness connection 1: 1.5 mm
Connection 1: Press sleeve
Contour code connection 1: M
Nom. diameter connection 2: DN 12
External pipe diameter connection 2: 15 mm
Wall thickness connection 2: 1.5 mm
Connection 2: Press sleeve
Contour code: M
Contour code connection 2: M
Pressure stage class flange: PN 16
Seal material: Ethylene-Propylene-Diene-Monomer (EPDM)
With bump ridge/edge: Yes
High tensile strength: Yes
Length: 60mm
Length connection 1: 30.5 mm
Working length connection 1: 10.5 mm
Length connection 2: 30.5 mm
Min. medium temperature (continuous): -35 °C
Working length connection 2: 10.5 mm
Max. medium temperature (continuous): 135 °C
Medium temperature (continuous): -35 - 135 °C
Max. working pressure at 20°C: 16 bar
KIWA approval: Yes
