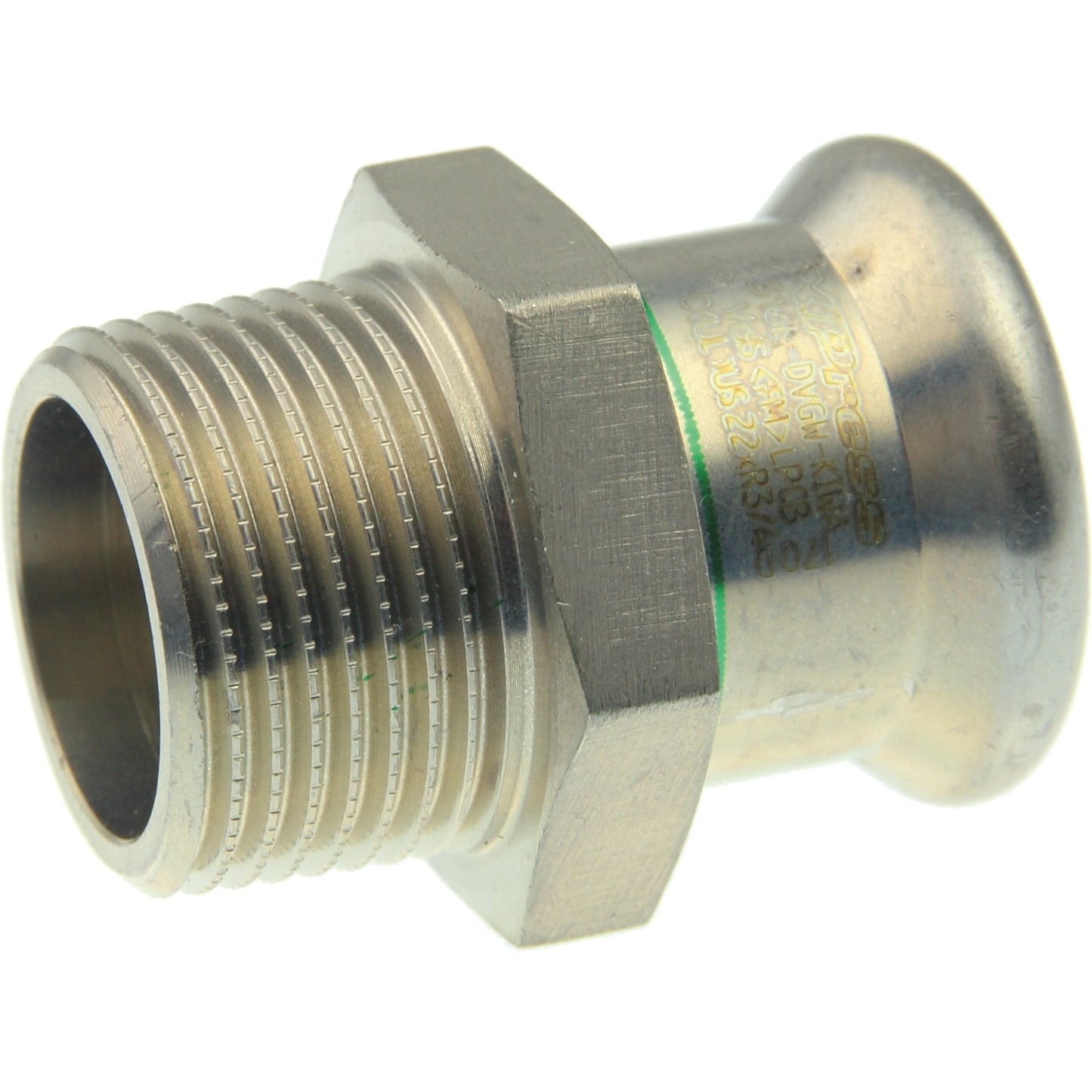

VSH Xpress S Point piece 3/4X22

VSH Xpress S Point piece 3/4X22

Regular price €17,06 EUR
Regular price Sale price €17,06 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

13 in stock

✔️ Free shipping from €100

✔️ Standard fast shipping

✔️ Delivered to any address for only €6.95!

VSH XPress Stainless steel straight coupling, point piece 22mm x 3/4" stainless steel (press x male thread)



Material connection 1: Stainless steel
Quality class connection 1: stainless steel 316 L (1.4404)
Surface protection connection 1: None (untreated)
Surface treatment connection 1: None (untreated)
Material connection 2: Stainless steel
Quality class connection 2: stainless steel 316 L (1.4404)
Surface protection connection 2: None (untreated)
Surface treatment connection 2: None (untreated)
Main color fitting: Gray
Shape: Straight
Version: 1-piece
System-related: Yes
Nom. diameter connection 1: DN 20
External pipe diameter connection 1: 22 mm
Wall thickness connection 1: 1.5 mm
Connection 1: Press sleeve
Contour code connection 1: M
Nom. diameter connection 2: 3/4" (20)
External pipe diameter connection 2: 26.9 mm
Wall thickness connection 2: 1.5 mm
Connection 2: Male thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Contour code: M
Pressure stage class flange: PN 16
Seal material: Ethylene-Propylene-Diene-Monomer (EPDM)
With bump ridge/edge: Yes
High tensile strength: Yes
Length: 43mm
Length connection 1: 27 mm
Working length connection 1: 6 mm
Length connection 2: 16 mm
Min. medium temperature (continuous): -35 °C
Working length connection 2: 22.3 mm
Max. medium temperature (continuous): 135 °C
Medium temperature (continuous): -35 - 135 °C
Max. working pressure at 20°C: 16 bar
KIWA approval: Yes
FM approval: Yes
LPCB approval: Yes
ULC approval: Yes
VdS approval: Yes
UL approval: Yes
