Tap Extension 1/2-100
Tap Extension 1/2-100
Regular price
€31,00 EUR
Regular price
Sale price
€31,00 EUR
Unit price
/
per
74 in stock
✔️ Free shipping from €100
✔️ Standard fast shipping
✔️ Delivered to any address for only €6.95!

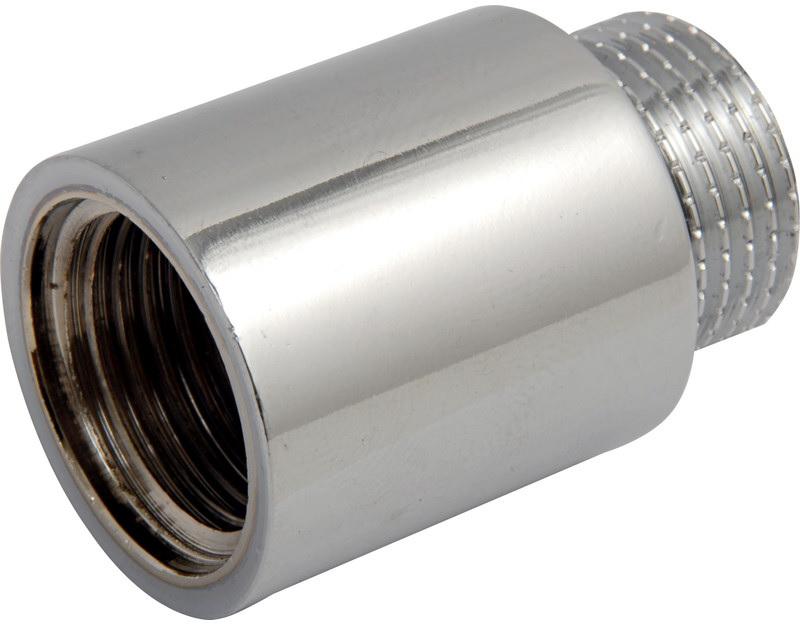

straight coupling, tap extension 1/2" x 1/2" L = 100mm chrome-plated (internal thread x external thread)
Material connection 1: Bronze
Connection quality class 1: Other
Surface protection connection 1: None (untreated)
Surface treatment connection 1: None (untreated)
Material connection 2: Bronze
Connection quality class 2: Other
Surface protection connection 2: None (untreated)
Surface treatment connection 2: None (untreated)
Main color fitting: Other
Shape: Straight
Version: 1-piece
System-related: Yes
Nom. diameter connection 1: 1/2" (15)
External pipe diameter connection 1: 15 mm
Wall thickness connection 1: 1 mm
Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
Contour code connection 1: Other
Nom. diameter connection 2: DN 15
External pipe diameter connection 2: 15 mm
Wall thickness connection 2: 1 mm
Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
Contour code: V
Contour code connection 2: Other
Flange standard: Other
Pressure stage class flange: Other
Seal material: Metal sealing
Length: 111mm
Working length connection 1: 56 mm
Length connection 2: 100 mm
Wrench width: 12.1 mm
Max. medium temperature (continuous): 100 °C
Medium temperature (continuous): 0 - 100 °C
Max. working pressure at 20°C: 16 bar
Max. operating pressure at max. medium temperature: 16 bar
Ring stiffness class: Other
Material connection 1: Bronze
Connection quality class 1: Other
Surface protection connection 1: None (untreated)
Surface treatment connection 1: None (untreated)
Material connection 2: Bronze
Connection quality class 2: Other
Surface protection connection 2: None (untreated)
Surface treatment connection 2: None (untreated)
Main color fitting: Other
Shape: Straight
Version: 1-piece
System-related: Yes
Nom. diameter connection 1: 1/2" (15)
External pipe diameter connection 1: 15 mm
Wall thickness connection 1: 1 mm
Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
Contour code connection 1: Other
Nom. diameter connection 2: DN 15
External pipe diameter connection 2: 15 mm
Wall thickness connection 2: 1 mm
Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
Contour code: V
Contour code connection 2: Other
Flange standard: Other
Pressure stage class flange: Other
Seal material: Metal sealing
Length: 111mm
Working length connection 1: 56 mm
Length connection 2: 100 mm
Wrench width: 12.1 mm
Max. medium temperature (continuous): 100 °C
Medium temperature (continuous): 0 - 100 °C
Max. working pressure at 20°C: 16 bar
Max. operating pressure at max. medium temperature: 16 bar
Ring stiffness class: Other
