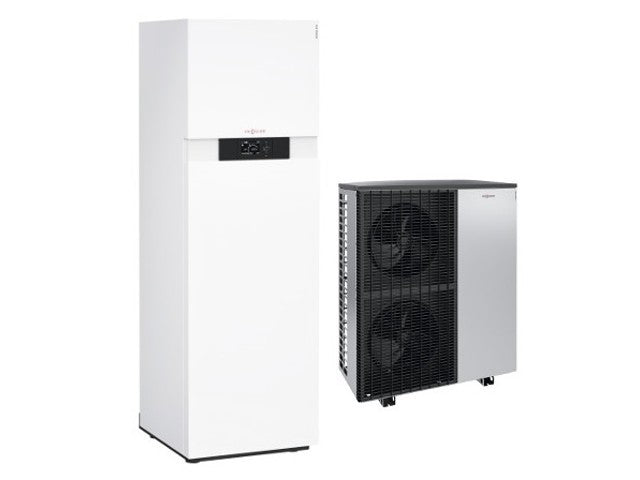

Viessmann Heat Pump Vitocal 222A AC 221.A16

Viessmann heat pump Vitocal 222A AC 221.A16, air/water, indoor and outdoor part, documentation set

This is a standard heat pump set from Viessmann. For complete installation, please contact us or search for the desired items in the webshop.

Heating capacity at 7/35°C according to EN 14511: 10.1 kW
COP at 7/35°C according to EN 14511: 4.95
COPd at Tj=+7°C: 6
Suitable for additional central heating: Yes
Room temperature control: Yes
Control type: Weather-dependent control
Type of optimization: Room thermostat
Suitable for hot tap water: Yes
Suitable for active cooling: Yes
Cooling capacity at 35/18°C according to EN 14511: 9.2 - 9.2 kW
Cooling capacity at 35/7°C according to EN 14511: 7 - 7 kW
Suitable for swimming pool water heating: Yes
Pool arrangement: Yes
Control for central heating boiler: Yes
Regulation for buffer tank control: Yes
Modulating compressor: Yes
Modulation percentage: 25 - 100%
Refrigerant type: R410a
Connection voltage: 400 V
Amount of refrigerant: 2.4 kg
Fuse (slow): 16 A
Width: 1109mm
Height: 1377mm
Depth: 546mm
Weight: 153 kg
Noise level (operating): 55 - 55 dB(A)
Sound power (Lwa) according to EN 12102 at 0/35°C: 55 dB
Sound pressure level according to EN 12102 at 0/35°C at 1 m distance: 47 dB
Air temperature: 999 - 999 °C
Air volume: 999 - 999 m³/h
Max. heating flow temperature: 60 °C
Central heating connection size: 1 1/4" outside
Max. working pressure delivery system: 3 bar
Protection rating (IP): IPX4
Remote control: Yes
Data transfer via internet: Yes
Data transfer via bus connection: Yes
Pump type (system pump): Energy saving
Pump voltage type (system pump): Direct current
Pump speed control (system pump): Built-in
Type of speed control (system pump): Stepless
Connecting and controlling multiple delivery systems possible: Yes
Soft starter built-in: Yes
Limitation of max. electrical power consumption: 25 A
SEER low temperature application (35°C) at average conditions: 184
SEER low temperature application (35°C) in colder conditions: 125
SEER low temperature application (35°C) in warmer conditions: 219
SEER mid-temperature application (55°C) at average conditions: 132
SEER mid-temperature application (55°C) in colder conditions: 105
SEER mid-temperature application (55°C) in warmer conditions: 159
Water heating energy efficiency (Nwh): 104.9%
Capacity profile: L
Space heating energy efficiency class: A+++
Water heating energy efficiency class: A
