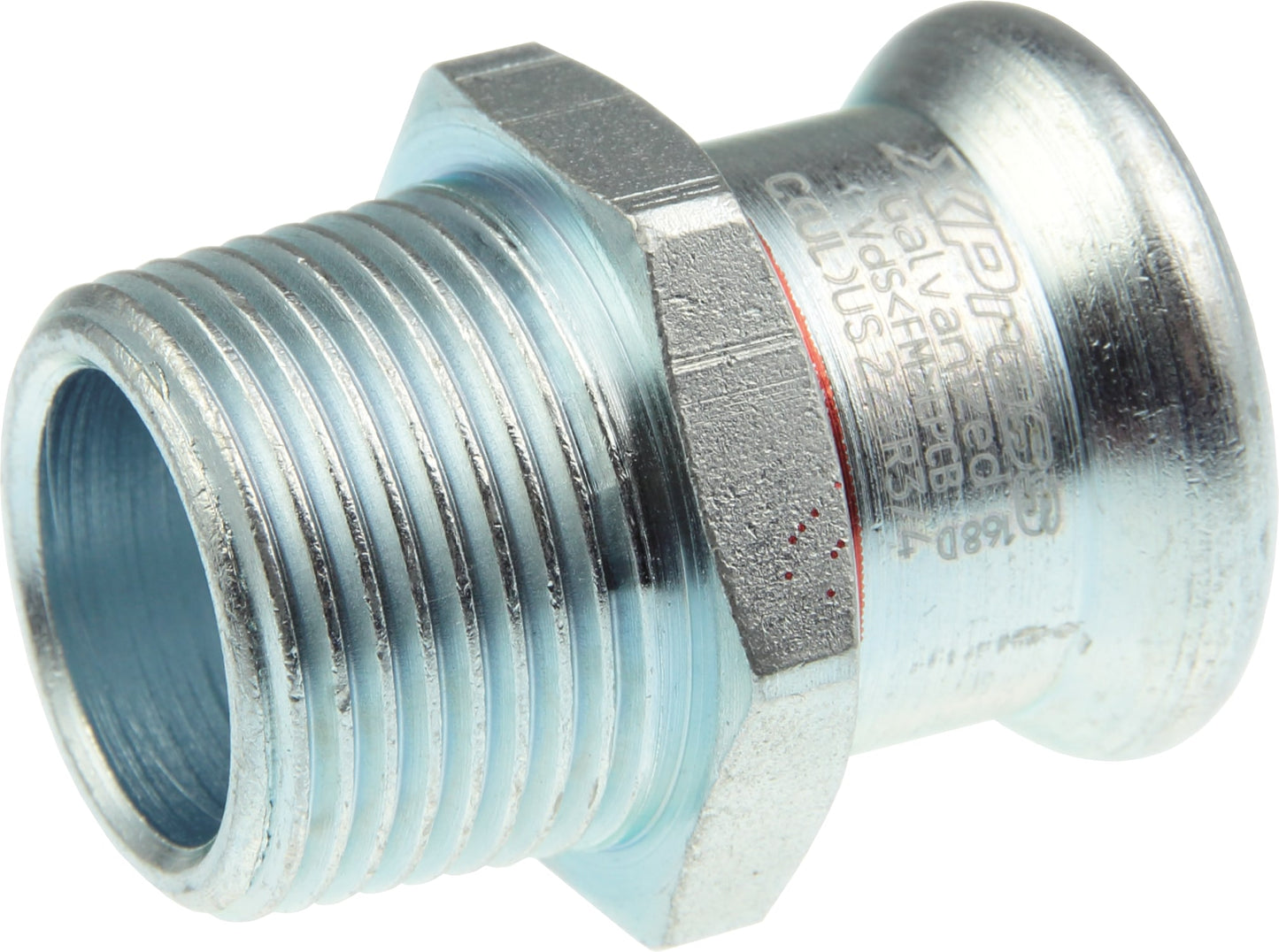

VSH Xpress C Point 3/8X15

VSH XPress STEEL straight coupling, point piece 15mm x 3/8" steel (press x male thread)



Material connection 1: Steel
Quality class connection 1: St 34.2 (1.0034)
Surface protection connection 1: Electrolytically galvanized
Material connection 2: Steel
Quality class connection 2: St 34.2 (1.0034)
Surface protection connection 2: Electrolytically galvanized
Main color fitting: Gray
Shape: Straight
Version: 1-piece
System-related: Yes
Nom. diameter connection 1: DN 12
External pipe diameter connection 1: 15 mm
Wall thickness connection 1: 1.5 mm
Connection 1: Press sleeve
Contour code connection 1: M
Nom. diameter connection 2: 3/8" (10)
External pipe diameter connection 2: 17.2 mm
Wall thickness connection 2: 1.5 mm
Connection 2: Male thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Contour code: M
Pressure stage class flange: PN 16
Seal material: Ethylene-Propylene-Diene-Monomer (EPDM)
With bump ridge/edge: Yes
High tensile strength: Yes
Length: 35mm
Length connection 1: 22 mm
Working length connection 1: 2 mm
Length connection 2: 13 mm
Min. medium temperature (continuous): -35 °C
Working length connection 2: 2.5 mm
Max. medium temperature (continuous): 135 °C
Medium temperature (continuous): -35 - 135 °C
Max. working pressure at 20°C: 16 bar
